Commodore Plus/4 A/V Breakout

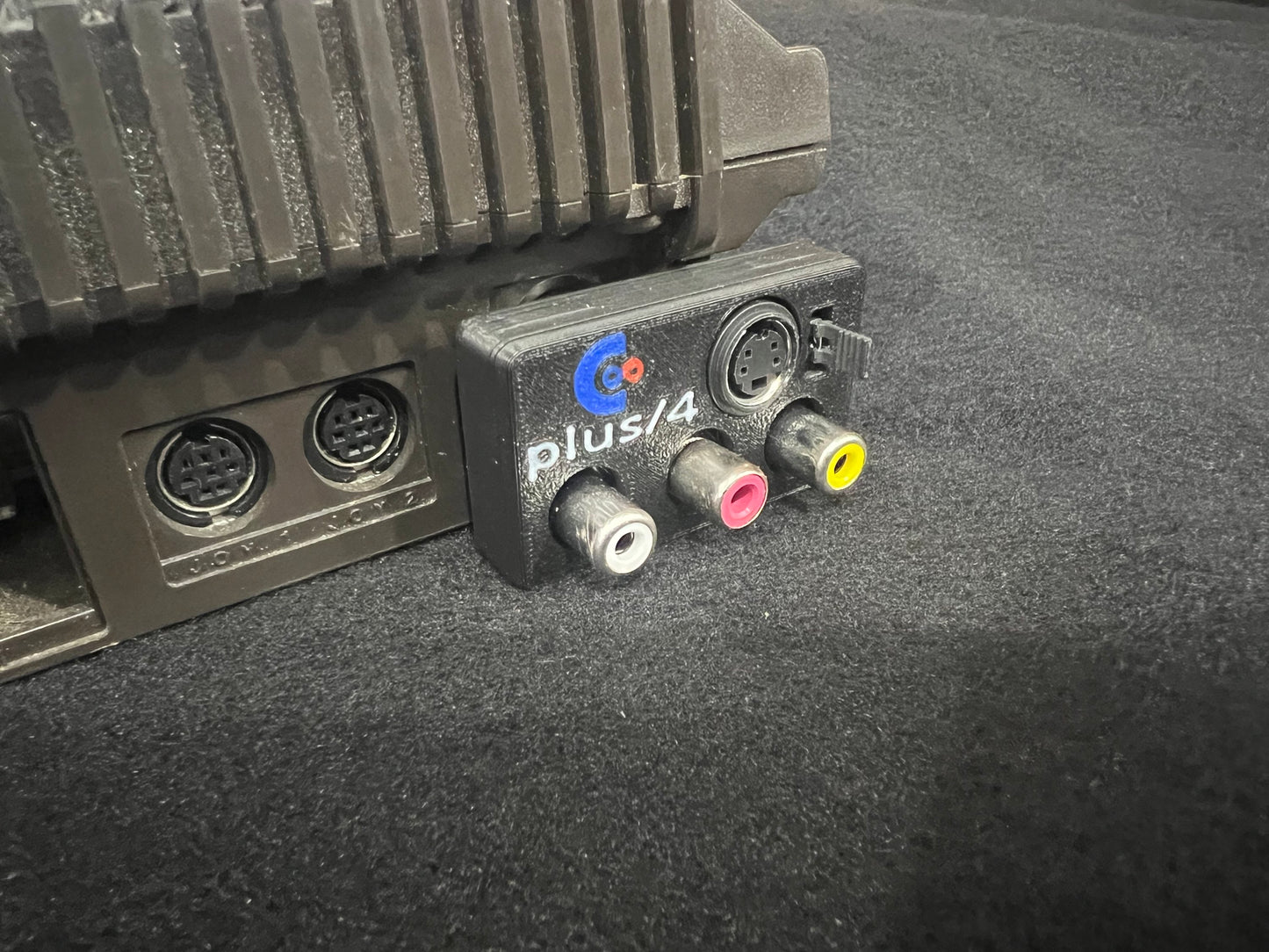

This device makes hooking up your plus/4 to a modern tv quick and simple.

Composite out.

SVideo out

"Stereo Out" (Not TRUE Stereo. plus/4 Mono Audio is split to both R and L outputs)

Documentation:

The A/V-Adaptor allows to connect standard S-Video and Audio or Composite-Video cables to the A/V-Jack of the Commodore plus/4.
A 330 resistor to attenuate the Chroma signal for S-Video is installed, but it can be deactivated by setting a jumper (JP2). This attenuation is required, since the chroma signal has a level, which is too high for standard S-Video.

The two audio output jacks can are connected. This provides an audio signal output on both the Right and Left jacks.

Connectors

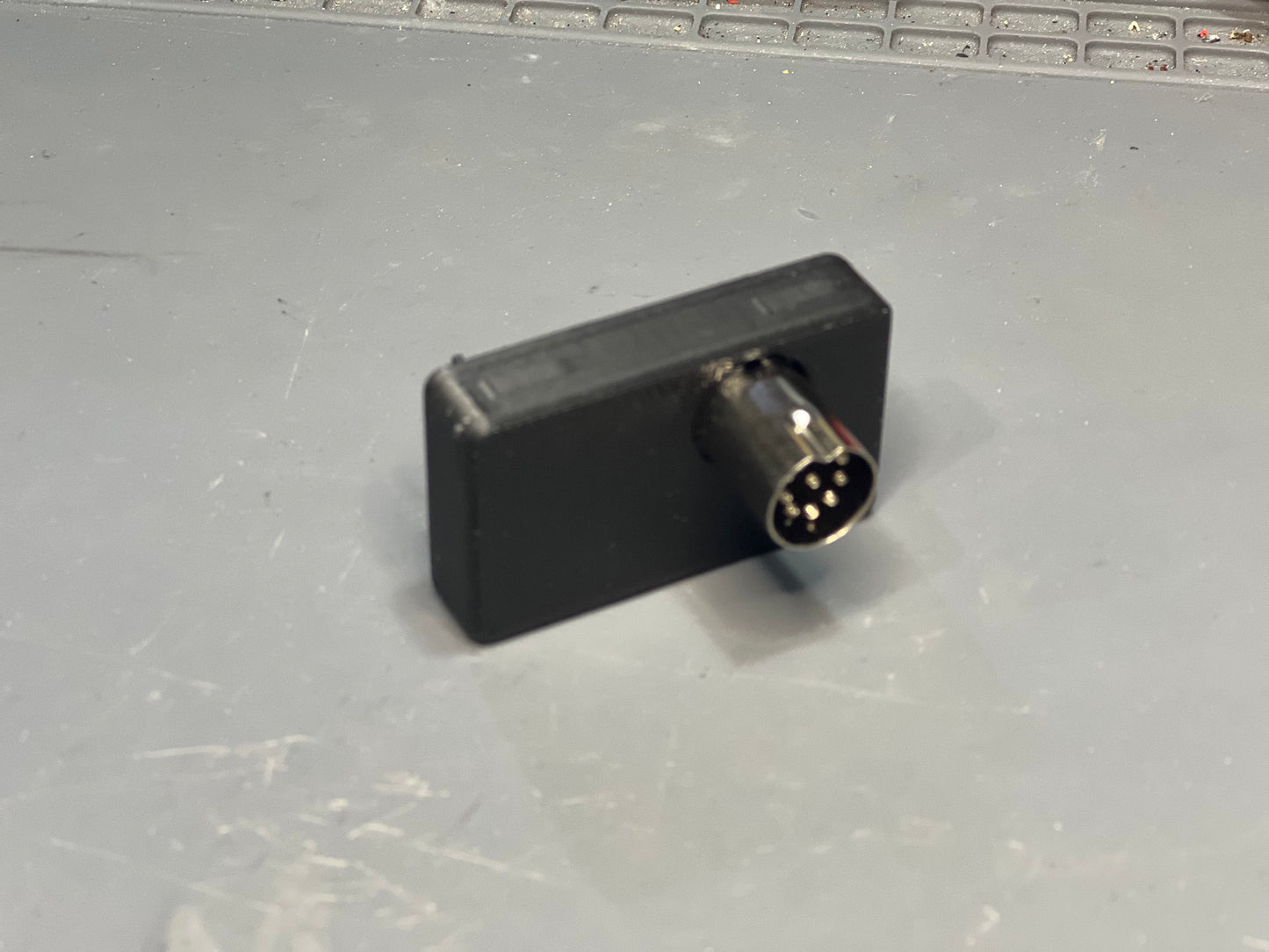

A/V-Plug
Pin Signal
1 Luminance
2 GND
3 Audio Out (mono/left)
4 Composite Video
5 Audio In
6 Chrominance
7 Audio Out (right – if provided)
8 -

S-Video Jack
A vertical PCB mount Mini-DIN jack (4 circuits)
Pin Signal
1 GND (Luminance)
2 GND (Chrominance)
3 Luminance
4 Chrominance

RCA-Jacks
 Audio Out (mono/left)
 Audio Out (mono/right)
Composite Video

Chrominance HI
The chrominance signal has a too high level for the standard S-Video chroma signal. The jumper bridges the 330 resistor (R1) to switch off this attenuation.
Status Configuration
open Attenuation active
set Attenuation inactive/off
